Evolving dispensing operations

Dispensing is one of the most common processes in the final assembly of electronic devices for both industrial and consumer applications. Maintaining strict quality standards while enhancing throughput is a fundamental challenge concerning dispensing processes.

Challenge

Space constraints and skilled labor

EMS companies face many challenges incorporating dispensing machines within manufacturing processes, such as selecting the hardware and the requirement for a skilled workforce to handle implementation, maintenance, and upgrades. Moreover, they have to tackle the rising manufacturing costs alongside the growing demand for electronics.

  • Multiple hardware selection
  • Skilled workforce
  • Maintenance

Solution

Sysmac Modular Solution

The Sysmac Modular Solution is a unified solution combining control, safety, motion, and robotics. The integration of core software and hardware provides the basis for common applications in FATP operations, including screw tightening, pick and place, and dispensing. The modular design helps to reduce implementation time, maintenance, and inventory management. Standardized programming offers significant advantages, including enhanced performance, machine connectivity, and integration of legacy equipment to Industry 4.0 standards.

  • Heavy reliance on manual labor
  • Ensuring quality standards
  • Maximizing throughput

Enabling Technologies

  • Sysmac controller for electronics manufacturing automationAutomation Systems
    Automation Control Systems

    Omron’s family of industry-leading controllers represent the heart of the Sysmac platform. These controllers feature synchronous control of all automation devices and advanced functionality.

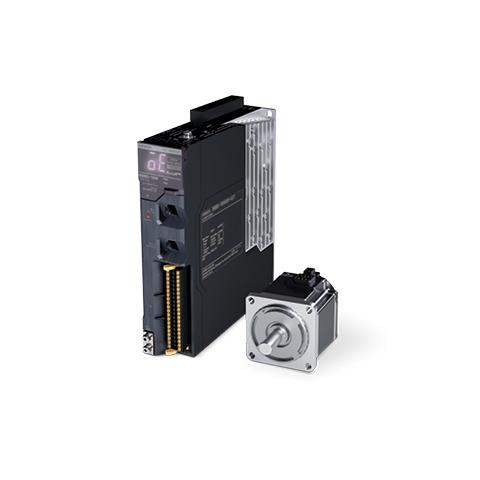

  • Omron 1S drive with ethercatServo Drives
    EtherCat Sysmac Servo System

    AC servo motors and drives are purpose-built to optimize the full machine manufacturing cycle – from machine design to installation and commissioning.

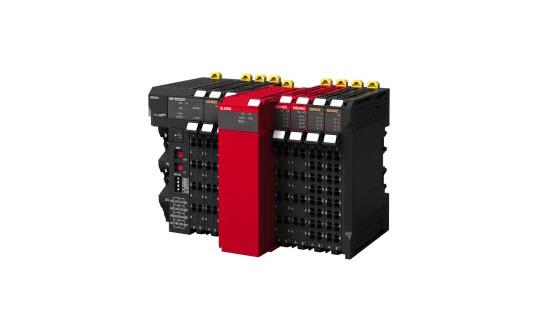

  • Omrons NX Safety controller protecting electronics manufacturing line.Safety Controllers
    Modular Safety Network

    NX Safety controllers offer a cost-effective solution with a modular design making it easy to adapt to a variety of machine types and sizes.

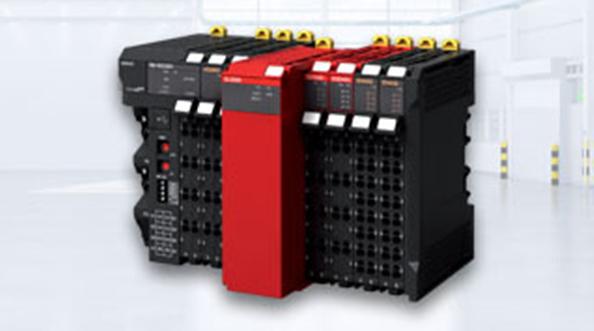

  • NX IORemote I/O
    NX Series Modular I/O

    Wide variety of slim design, high density remote I/O modules for use with EtherNet-IP or EtherCAT master controller units.

  • NA HMIHuman Machine Interface
    NA Series Advanced Programmable Terminal/HMI

    Enable faster, more efficient control and monitoring with wide screen models: 7, 9, 12 and 15 inches.

  • FH Vision SystemVision Systems
    FH Vision Systems

    The fast and most flexible vision system with newly added AI Components to the already complete and powerful set of inspection tools.

  • Smart Cameras/Vision Sensors
    FHV7 Smart Camera - The Single Camera FH Vision System

    Omron FHV7 cameras features the world's first multi-color light and high-res image sensors. It brings the power of a vision system to a smart camera.
