Ensuring accurate assembly with precise electronic component identification

In electronics manufacturing, the significance of identifying small electronic components cannot be overstated. These minute components, including resistors, capacitors and integrated circuits, are vital for the optimal functionality and performance of electronic devices. Precise identification is essential for ensuring accurate assembly, effective quality control, and streamlined production processes, ultimately creating reliable and top-notch electronic products.

Challenge

Protecting brand and product integrity

Common issues in electronics manufacturing related to poor traceability are damage to brand value, difficulty in reading due to miniaturization of parts and the need to reduce development time by EMS companies. Brand value can be harmed by product failures. Miniaturization of parts makes marking and reading challenging, affecting quality control. EMS companies strive to shorten development time to stay competitive.

  • Damage to brand value
  • Difficulty in marking due to miniaturization of parts
  • Time constraints around development

Solution

Advanced code reading for miniature printing

OMRON's compact, high-performance code reader is designed to fit in tight locations and can be configured to read codes consistently without obstructing operators or robots. This product is complemented by OMRON's vast portfolio of industrial sensing technologies, which work alongside barcode readers to detect the presence or absence of components, thereby improving overall system efficiency and reliability.

  • High-performance code reading
  • Diverse sensing portfolio
  • Improve overall system efficiency

Compact reader suitable for electronics manufacturing

The V440 is a highly configurable reader that directly addresses positioning and area reading problems.

Enabling Technologies

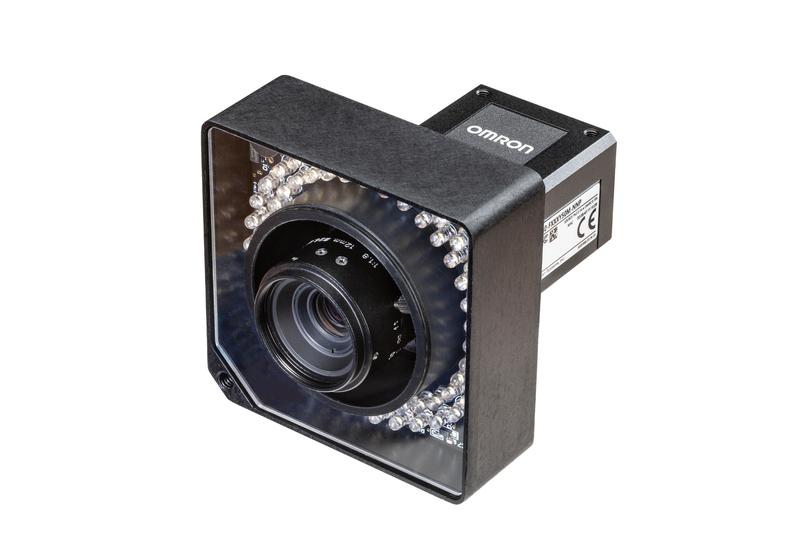

  • Omron V440-F product photoFixed-Mount Barcode Readers
    V440 High-Resolution Code Reader

    The V440 is a high-speed, high-resolution C-mount code reader with weblink 3.0 browser-based user interface.

  • Omron V460 product photoHandheld Barcode Readers
    V460 Handheld Barcode Reader

    The V460 sets a new standard for usability with predictive autofocus and patented intelligent lighting to read direct part marks and labels of different sizes and distances.

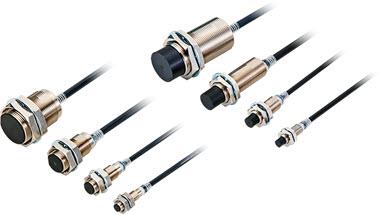

  • Sensing technologiesSensing technologies
    Sensing technologies

    Sensors for every application, for machines that never stop

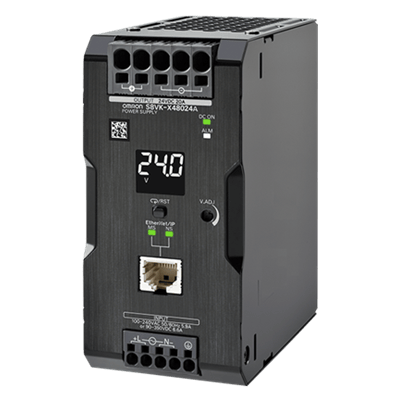

  • S8VKXPower Supplies
    S8VK-X Switch Mode Power Supply

    A DIN rail power supply with Ethernet/IP and Modbus TCP communications for continuous monitoring

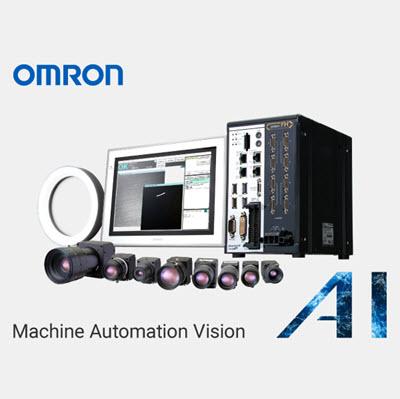

  • FH Vision SystemVision Systems
    FH Vision Systems

    The fast and most flexible vision system with newly added AI Components to the already complete and powerful set of inspection tools.
